EPDM Tubing, Profiles and Elastomers

EPDM Rubber Tubing At Vanguard Products

At Vanguard Products, we engineer and manufacture EPDM tubing as part of our expansive portfolio of natural and synthetic rubber products. EPDM rubber tubing offers many unique properties that make it optimal for use in a variety of industries and applications. With over 50 years of experience, we have developed the expertise necessary to consistently deliver the best products for your needs.

If you would like to learn more about Vanguard Products, please contact us today.

Capabilities Industries Applications Parts Number Cross Reference EPDM Properties EPDM vs Silicone Rubber

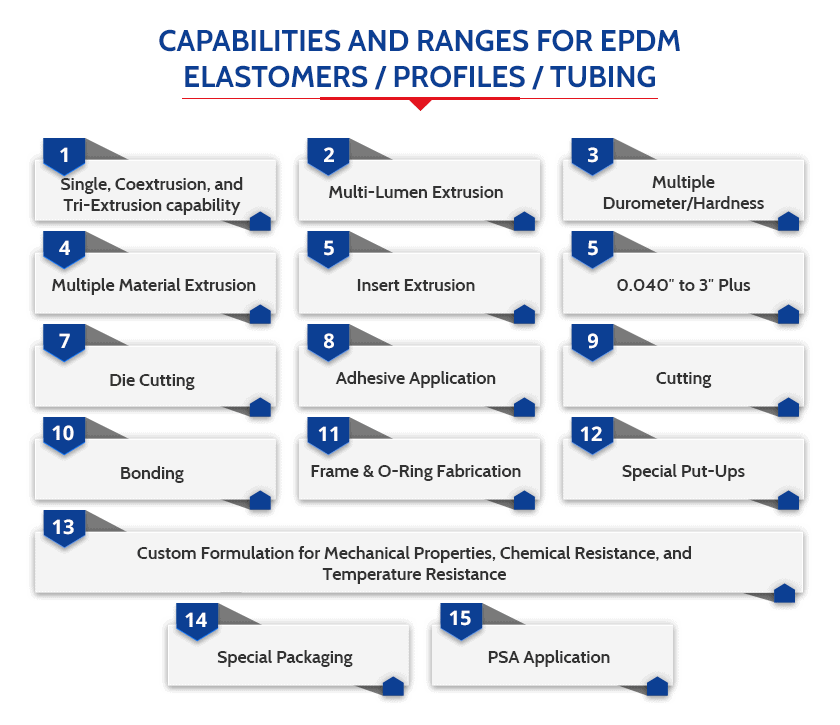

Capabilities and Ranges For EPDM Elastomers / Profiles / Tubing

Single, Coextrusion, and Tri-Extrusion Capability
Multi-Lumen Extrusion
Multiple Durometer/Hardness
Multiple Material/Color Extrusion
Insert Extrusion
0.040″ to 3″ Plus
Custom Formulation for Mechanical Properties, Chemical Resistance, and Temperature Resistance, and Color Matching
Die Cutting
Adhesive Application
Cutting
Bonding
Frame & O-Ring Fabrication
Special Put-Ups
Special Packaging
PSA Application

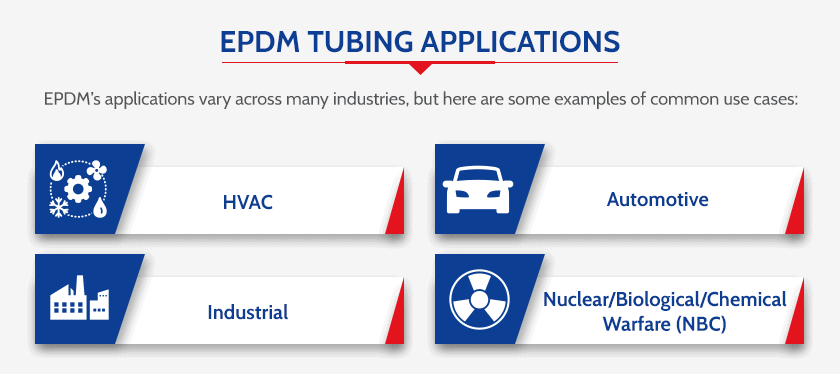

Industries Served

EPDM’s applications vary across many industries, but here are some examples of common use cases:

HVAC. HVAC systems rely on EPDM tubing for pressure switch tubing and drain tubes, among others.
Automotive. EPDM tubing is often used in vehicles as heating and cooling hoses, washer fluid tubing, within emissions systems, and in hydraulic systems.
Industrial. Industrial facilities commonly use EPDM rubber tubing as radiator and hydraulic hoses on machinery and equipment. Chemical manufacturers, in particular, benefit from EPDM tubing for its innate resistance to many chemistries.
Nuclear/Biological/Chemical Warfare (NBC). The military has increasingly turned to EPDM rubber for use in various NBC protective and decontamination equipment thanks to its ability to resist harsh cleaning agents after use.

High Precision Cost Efficient Production in ISO 9001:2015 Certified Facility
Custom Compound Formulation for Precise Engineered Performance and Optimized Cost
In-House Economical Secondary Operations such as Cutting, Bonding, and O-Ring Fabrication
Multi-Lumen and Tight Tolerance Production for Optimal Cost
Manufacturer and Complete One Stop Shop for Extrusions in Engineering Elastomers with Extensive Application Engineering Support

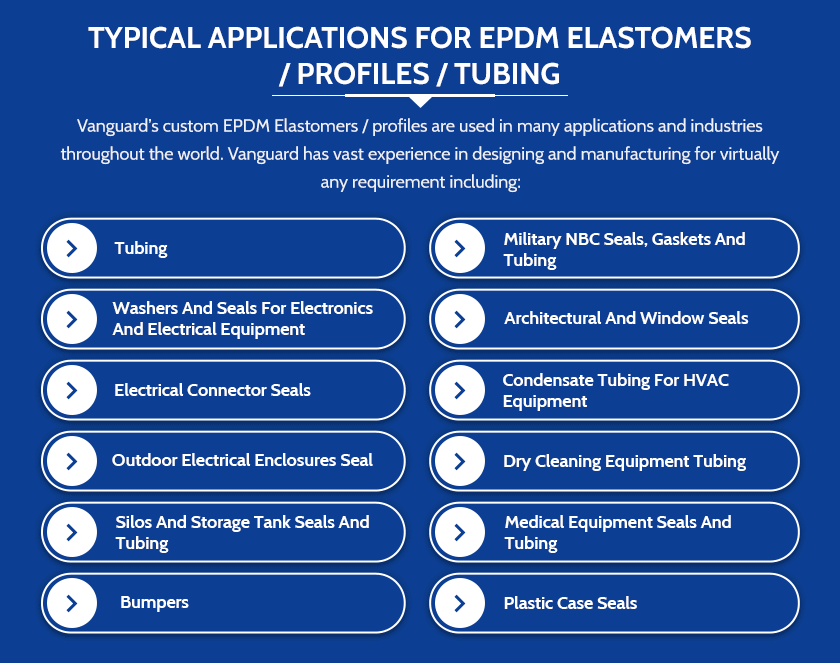

Typical Applications For EPDM Elastomers / Profiles / Tubing

Vanguard’s custom EPDM Elastomers / profiles are used in many applications and industries throughout the world. Vanguard has vast experience in designing and manufacturing for virtually any requirement including:

Tubing
Military NBC Seals, Gaskets and Tubing
Washers and Seals For Electronics and Electrical Equipment
Architectural and Window Seals
Electrical Connector Seals
Condensate Tubing For HVAC Equipment
Outdoor Electrical Enclosures Seal
Dry Cleaning Equipment Tubing
Silos and Storage Tank Seals and Tubing
Medical Equipment Seals and Tubing
Bumpers
Plastic Case Seals

Material Compatibility/Application Guidelines

Click to Expand

60 Shore A Durometer EPDM Tubing

PART NUMBER	COLOR	TUBING SIZE IDXOD
BAVP5054-08-XXX	Black	1 mm X 3 mm
BAVP51135-67-XXX	Black	1″ X 1-1/2″
BAVP51135-61-XXX	Black	1″ X 1-1/8″
BAVP51135-11-XXX	Black	1/16″ X 1/8″
BAVP51135-43-XXX	Black	1/2″ X 3/4″
BAVP51135-41-XXX	Black	1/2″ X 5/8″
BAVP51135-10-XXX	Black	1/32″ X 1/16″
BAVP51135-31-XXX	Black	1/4″ X 1/2″
BAVP51135-28-XXX	Black	1/4″ X 3/8″
BAVP51135-16-XXX	Black	1/8″ X 1/4″
BAVP5054-18-XXX	Black	10 mm X 15 mm
BAVP51135-84-XXX	Black	1-1/4″ X 1-1/2″
BAVP5236-48-XXX	Black	1-1/8″ X 1-1/2″
BAVP5236-50-XXX	Black	1-3/8″ X 1-1/2″
BAVP5054-41-XXX	Black	15 mm X 20 mm
BAVP5054-11-XXX	Black	2 mm X 6 mm
BAVP5054-12-XXX	Black	3 mm X 8 mm
BAVP51135-24-XXX	Black	3/16″ X 3/8″
BAVP51135-23-XXX	Black	3/16″ X 5/16″
BAVP51135-25-XXX	Black	3/16″ X 7/16″
BAVP51135-14-XXX	Black	3/32″ X 7/32″
BAVP51135-51-XXX	Black	3/4″X1″
BAVP51135-35-XXX	Black	3/8″ X 1/2″
BAVP51135-37-XXX	Black	3/8″ X 5/8″
BAVP5054-13-XXX	Black	4 mm X 8 mm
BAVP51135-32-XXX	Black	5/16″ X 7/16″
BAVP51135-33-XXX	Black	5/16″X9/16″
BAVP51135-45-XXX	Black	5/8″ X 3/4″
BAVP5054-14-XXX	Black	6 mm X 9 mm
BAVP5054-15-XXX	Black	7 mm X 10 mm
BAVP5054-16-XXX	Black	9 mm X 13 mm

EPDM Properties

Ethylene propylene diene monomer (EPDM) is a synthetic rubber used to make a variety of common and versatile products, including rubber tubing. EPDM tubing resists heat, chemical, ozone, abrasion, and weather, making it a popular choice for use in many industries.

Physical Properties

Common Name	Properties
Shore A Range	50-90
Max. Service Temperature	250° F
Min. Service Temperature	-40° F
Compression Set Resistance	A-B
Resiliency	B
Flame Resistance	C
Ozone Resistance	A
Weather Resistance	A
Electrical Insulation	B
Abrasion Resistance	B
Permeability to Gases	Low
Tensile Strength	Moderate
Tear Strength	High

Chemical Resistance

Common Name	Properties
Oil Resistance	NR
Fuel Resistance	NR
Alcohol Resistance	A
Alkali Resistance	A-B
Acid Resistance	B
Water Resistance	A
Steam Resistance	A
Animal/Vegetable Oils	B
Aliphatic Hydrocarbon Solvents	D
Aromatic Hydrocarbon Solvents	D
Oxygenated Solvents	A-B
Food Contact Suitability	B

Understanding the properties of a given material is essential during the selection process. Here are some of the general properties of EPDM:

Common names. EPDM is most commonly referred to by its chemical name ethylene propylene diene monomer, or by the acronym EPDM. Some of the common brand names for the gum polymer include Dutral^®, Nordel^®, and Vistalon^®.
Temperature range. EPDM can safely handle operating temperatures down to -20°F, and becomes brittle around -40°F. The high end of EPDM’s operating temperature range is approximately 300°F.
Strength. EPDM features a tensile range between 500–2500 psi, which gives it excellent tear resistance compared to many other rubbers.
Hardness. EPDM has a Shore A hardness between 30 and 90 depending on the specific material grade.
Environmental/Chemical Performance. EPDM is broadly used because of its expansive spectrum of performance under difficult conditions. It resists UV radiation, ozone, many chemicals, abrasion, and tearing. However, it does have poor resistances to oil and solvents.

EPDM vs. Silicone Rubber

Silicone and EPDM are both used for rubber tubing, but the properties of the two materials vary. Knowing the differences is essential to ensure selection of the best rubber tubing for a particular use case.

EPDM has a polymer structure that makes it well equipped to withstand many environmental factors, such as UV and ozone exposure. EPDM tubing is cost competitive with silicone rubber and also features a higher tear strength. The primary limitation to EPDM rubber is its operational temperature range. EPDM tubing typically can’t handle temperatures much higher than 300°F or lower than -30℉. EPDM is also prone to swelling if exposed continuously to oil.

Silicone rubber is an inorganic polymer composed of silicon, hydrogen, carbon, and oxygen. Silicone also withstands environmental factors well but offers a much broader operating temperature range. Silicone rubber can operate in temperatures up to 446°F. Where EPDM has higher tear strength, silicone offers better elasticity and remains elastic even in cryogenic temperatures down to -76°F.

Part Number Cross Reference For EPDM Tubing

Vanguard EPDM Tubing Also Available At:

Visit Our YouTube Channel:

Food Grade

Consistent with FDA Regulation 21CFR177.2600 for Food Contact
Industrial

Closed Cell Sponge

Dense

50-90 Shore A Durometer

MIL Spec

NBC Compliant
ASTMD2000 AA,
BA, And CA

Industrial Dense

50-90 Shore A Durometer

EPDM

EPDM Tubing In Fractional And Metric Sizes

P/N	Material	Durometer	Color	ID Inches	OD Inches	ID mm	OD mm
BAVP51135-10	EPDM	60 Shore A	Opaque Black	1/32	1/16
BAVP51135-11	EPDM	60 Shore A	Opaque Black	1/16	1/8
BAVP51135-12	EPDM	60 Shore A	Opaque Black	1/16	3/16
BAVP51135-13	EPDM	60 Shore A	Opaque Black	3/32	5/32
BAVP51135-14	EPDM	60 Shore A	Opaque Black	3/32	7/32
BAVP51135-15.5	EPDM	60 Shore A	Opaque Black	1/8	3/16
BAVP51135-16	EPDM	60 Shore A	Opaque Black	1/8	1/4
BAVP51135-23	EPDM	60 Shore A	Opaque Black	3/16	5/16
BAVP51135-24	EPDM	60 Shore A	Opaque Black	3/16	3/8
BAVP51135-25	EPDM	60 Shore A	Opaque Black	3/16	7/16
BAVP51135-22	EPDM	60 Shore A	Opaque Black	3/16	1/4
BAVP51135-28	EPDM	60 Shore A	Opaque Black	1/4	3/8
BAVP51135-28.5	EPDM	60 Shore A	Opaque Black	1/4	7/16
BAVP51135-31	EPDM	60 Shore A	Opaque Black	1/4	1/2
BAVP51135-32	EPDM	60 Shore A	Opaque Black	5/16	7/16
BAVP51135-33	EPDM	60 Shore A	Opaque Black	5/16	9/16
BAVP51135-24.5	EPDM	60 Shore A	Opaque Black	3/8	7/16
BAVP51135-35	EPDM	60 Shore A	Opaque Black	3/8	1/2
BAVP51135-37	EPDM	60 Shore A	Opaque Black	3/8	5/8
BAVP51135-41	EPDM	60 Shore A	Opaque Black	1/2	5/8
BAVP51135-43	EPDM	60 Shore A	Opaque Black	1/2	3/4
BAVP5054-41	EPDM	60 Shore A	Opaque Black	0.591	0.786
BAVP51135-45	EPDM	60 Shore A	Opaque Black	5/8	3/4
BAVP51135-51	EPDM	60 Shore A	Opaque Black	3/4	1
BAVP51135-61	EPDM	60 Shore A	Opaque Black	1	1 1/8
BAVP51135-64	EPDM	60 Shore A	Opaque Black	1	1 1/4
BAVP51135-67	EPDM	60 Shore A	Opaque Black	1	1 1/2
BAVP5236-48	EPDM	60 Shore A	Opaque Black	1 1/8	1 1/2
BAVP51135-84	EPDM	60 Shore A	Opaque Black	1 1/4	1 1/2
BAVP5236-50	EPDM	60 Shore A	Opaque Black	1 3/8	1 1/2
BAVP5054-08	EPDM	60 Shore A	Opaque Black			1	3
BAVP5054-11	EPDM	60 Shore A	Opaque Black			2	6
BAVP5054-12	EPDM	60 Shore A	Opaque Black			3	8
BAVP5054-13	EPDM	60 Shore A	Opaque Black			4	8
BAVP5054-14	EPDM	60 Shore A	Opaque Black			6	9
BAVP5054-15	EPDM	60 Shore A	Opaque Black			7	10
BAVP5054-16	EPDM	60 Shore A	Opaque Black			9	13
BAVP5054-18	EPDM	60 Shore A	Opaque Black			10	15
BAVP5054-41	EPDM	60 Shore A	Opaque Black			15	20
